GSP 18650 3Ah 고출력(20A 방전)




MAX. Charging Current 4A,



 MAX. Continuous Discharging Current 20A







전동 공구,모터 구동용 에 특화된 고출력 배터리 입니다.



고속 충전 및 차량 및 모터구동용 전원 공급 장치에 특화된 제품 입니다.



Battery Specification



NO

Item

Specification

1

Nominal Voltage

3.6V

 2

Nominal Capacity

3,000mAh

 3

Charging Method

Constant Current/Constant Voltage

 4

Discharge Cut off Voltage

2.5 V

 5

Nominal Charging Current

0.5C

 6

Max Charging Current

4A

 7

Standard Discharge Current

0.2C(0.6A)

 8

Max Discharge Current

20A, 30C 660A(≤ 1.5Sec)

 9

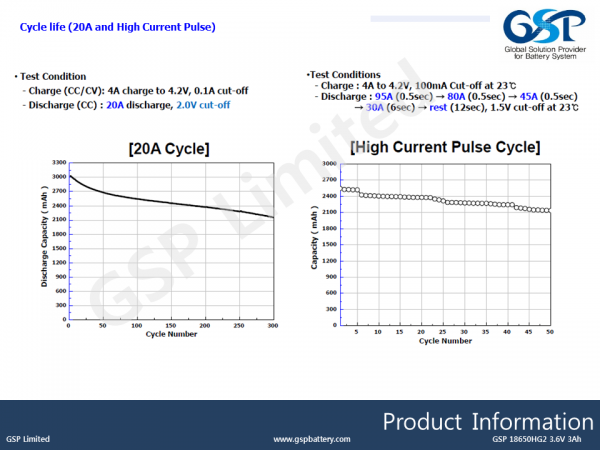

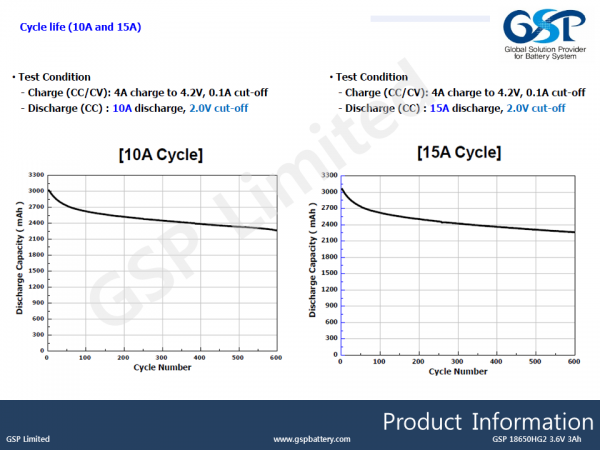

Cycle Life

300cycle,70%기준

 10

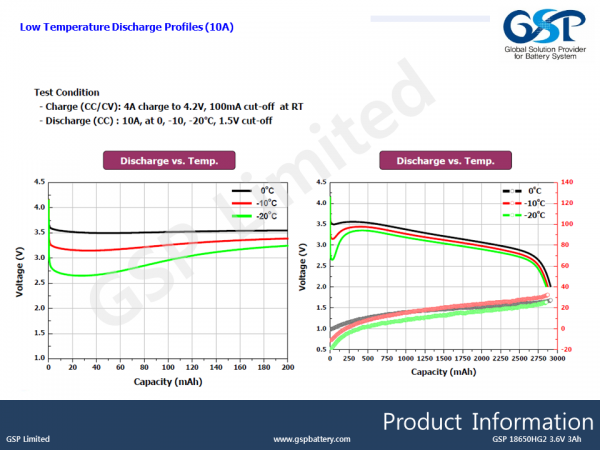

Operating Temperature

For charging: 0 to +50°C

For discharge: -20  to +75°C

 11

Weight(g)

47g

 12

Dimension(mm)

Diameter 18.35±0.1,Length 65.00±0.15
