Thin Type CELL GSP 054639 110mAh -Primary Cell
MAX. Pluse Discharging Current 120mA(duration=100ms)
카드형 Thin Type 휴대용 기기 에 적합하게 설계된 배터리 팩 입니다.
기타 Tag형 전원 공급 장치에 특화된 제품 입니다
Battery Specification
NO | Item | Specification |
1 | Nominal Voltage | 3.0V |
2 | Voltage Range | 1.5 to 3.3V |
| Nominal Capacity | 110mAh(1mA to 1.5 V @ 23° C) |
3 | Max Discharge Current | 35mA Continuous |
4 | Pulse Capability | Up to 80mA |
5 | Typical Weight | 1.6g |
6 | Operating Temperature | -20 to +60°C |
7 | Storage Temperature | -40° C to 60° C (Max30℃for a>5years life) |
8 | Humidity | 65 ± 20%RH |
9 | Exterior/Housing | Laminated Aluminum Foil |
10 | Terminals/Connector | Ni / Stainless steel Tabs (Ni-Ni Fog tin optional) |
11 | Safety | AL-MSDS/RD-006 |
12 | Transportation |
Excepted from Regulations
|

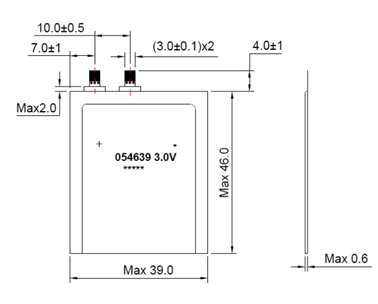

13 | Dimension(mm) | 0.6(T) * 39.0(W) * 46.0(L) |
FEATURES
- Wafer thin
- Flat discharge curve
- Long shelf life
- Low self-discharge rate(less than 2% after 1 year
of Storage at +20℃)
- High energy density
- Wide operating temperature range
- Lightweight
-“Smart” Security Cards
- Asset Tracking Tags
- Bank Theft Tracking Systems
- Electronic Record Tracking Systems
- Medical Devices
- RFID
