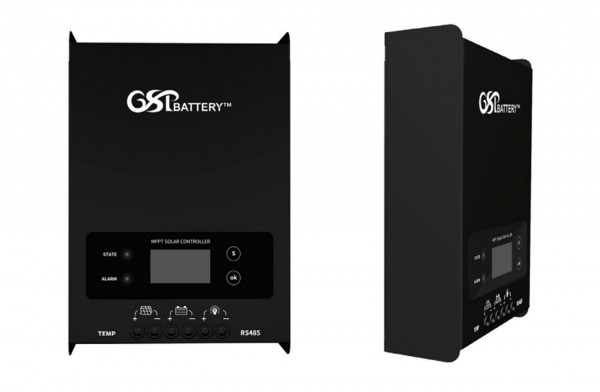

MODEL

MPPT250100

Controller type

Controller with Maximum Power Point Tracking (MPPT)

MPPT effi ciency

>99.5%

No-load static loss

1W~1.2W

Battery system voltage

12V/24V/48V Auto

Self-consumption(max.)

Fan cooling

PV Maximum Open Circuit Voltage (VOC)

250Vdc

Start charging voltage point

3V higher than battery voltage

Input low voltage protection point

2V higher than the current battery voltage

Input overvoltage protection point

250Vdc

Rated Input Power/ 12V 24V 36V 48V System

1300W / 2600W / 3900W / 5200W

Applicable battery type

Lead-acid battery / Li-ion battery / LiFEPO4

Lithium battery activation function

Optional

Rated load current

50A

Working temperature

-20°C~+55°C

Storage temperature

-40°C~+70°C

Size(L X W X H)

305 X 200 X 85 mm

Weight

About 3.4kg
