MODEL

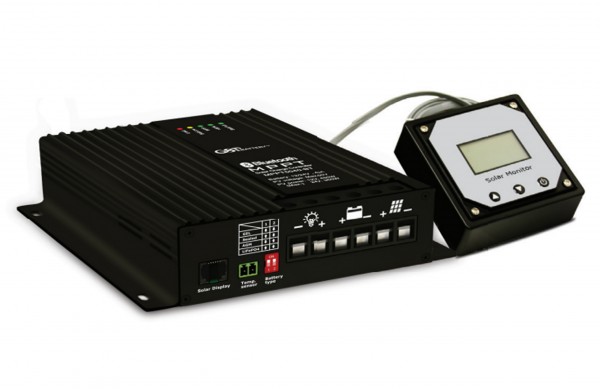

MPPT5040 (APP display)

System voltage

12V / 24V auto recognition

Max. PV power

12V:480Wp / 24V:960Wp

Max. PV voltage

50V

Max. charge current

40A

Self-consumption(max.)

4mA

Recharge the battery voltage

12V: 13.2V 24V:26.4V

HVD(max.)

12V: 15.5V 24V:31V

Max. Load current

40A

Low voltage disconnect

12V: 11.0V 24V:22.0V

Load reconnect voltage

12V: 12.5V 24V:25V

Overcurrent protection

YES

Short circuit protection

YES

Overheat protection

YES

Fan control

YES

 Build-in fuse

 YES

 Temperature sensor

 YES

 Charging stage

 3 stage

 Size(L X W X H)

180 X 146 X 40mm

 Weight

764g

 Max. altitude

 max. 95% RH

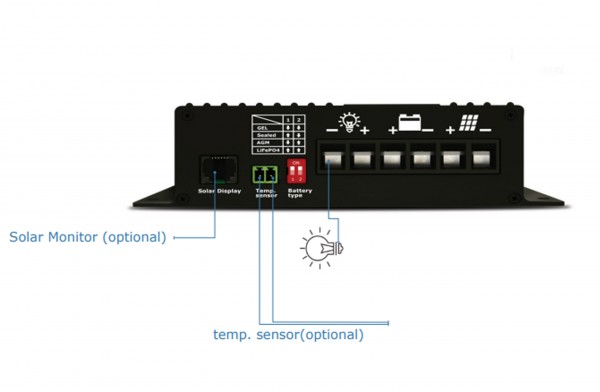

 Optional accessories

temperature sensor

LCD meter
