MODEL

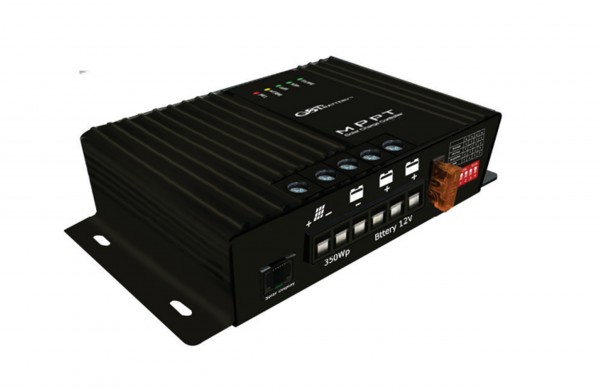

MPPT5025 (APP display)

System voltage

12V auto recognition

Max. PV power

350Wp

Max. PV voltage

50V

Max. charge current

25A

Self-consumption(max.)

8-16mA

Recharge the battery voltage

12.7V

HVD(max.)

15V

Max. Load current

25A

Low voltage disconnect

11.0V

Load reconnect voltage

12.5V

Overcurrent protection

YES

Short circuit protection

YES

Overheat protection

YES

Fan control

YES

 Build-in fuse

 YES

 Temperature sensor

 YES

 Charging stage

 3 stage

 Size(L X W X H)

 147 X 74 X 40mm

 Weight

 340g

 Max. altitude

 max. 95% RH

 Optional accessories

temperature sensor

LCD meter
