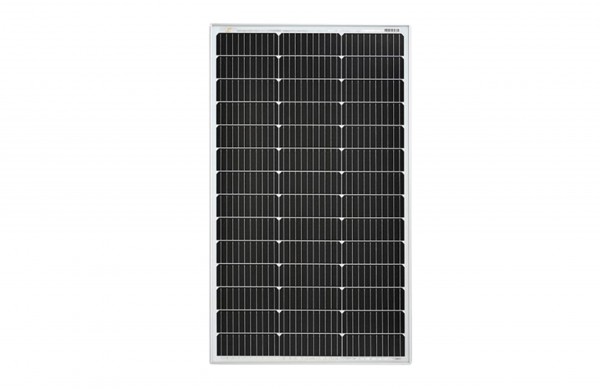

SOLAR PANEL 135W












 -. User Manual / 1 Year Quality Warranty Period)

 -. option



-.SOLAR PV (ABS) SIDE BRACKET 550MM (BLACK & WHITE)


-.SOLAR PV CONNECTOR (PAIR) (RED/BLACK 1SET)

-.SOLAR PV CONNECTOR DIODE 20A

-.SOLAR PV CONNECTOR (PAIR) PV004-T2, 1000V, 30A



-.SOLAR PV CONNECTOR (PAIR) (RED/BLACK 1SET)

-.SOLAR PV (ABS) CABLE ENTRY GLAND (BLACK & WHITE)

-.SOLAR PV (ABS) SIDE BRACKET 180MM (BLACK & WHITE)
















 MODEL

GSP-HG-M2-135W

Maximum power(Pmax)

135W

  Open-circuit voltage(Voc)

24.0V

Voltage at Pmax(Vmp)

20.3V

Short-circuit current(Isc)

6.91A

Current at Pmax(Imp)

6.59A

  Cells Effi ciency(%)

22.7%

The maximum system voltage

1000V DC(IEC)

Power temperature coeffi cient

-0.42%/℃

Voltage temperature coeffi cient

-0.32%/℃

Current temperature coeffi cient

-0.04%/℃

Output power tolerance

±3%

Operating Temperature

-40℃-+85℃

 Weight

About 7.7 kg

 Size(mm)

 1165 X 590 X 35 mm

 L : length /  W : Width / H : height
