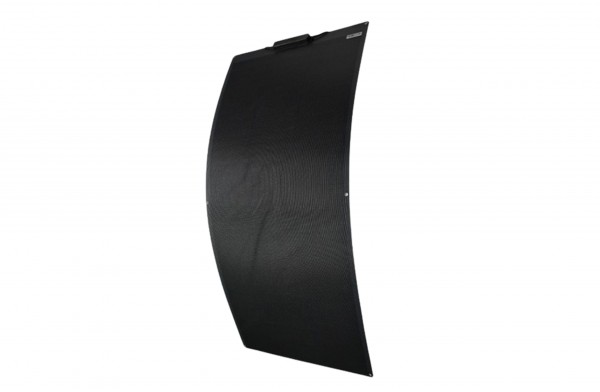

FLEXIBLE PANEL 120W
-. User Manual / 1 Year Quality Warranty Period) |
-. option
-.SOLAR PV (ABS) SIDE BRACKET 550MM (BLACK & WHITE)
-.SOLAR PV CONNECTOR (PAIR) (RED/BLACK 1SET) -.SOLAR PV CONNECTOR DIODE 20A -.SOLAR PV CONNECTOR (PAIR) PV004-T2, 1000V, 30A
-.SOLAR PV CONNECTOR (PAIR) (RED/BLACK 1SET) -.SOLAR PV (ABS) CABLE ENTRY GLAND (BLACK & WHITE) -.SOLAR PV (ABS) SIDE BRACKET 180MM (BLACK & WHITE) |
MODEL | GSP - FL - D2 - 120W |
Maximum power(Pmax) | 120W |
Open-circuit voltage(Voc) | 24.0V |
Voltage at Pmax(Vmp) | 20.3V |
Short-circuit current(Isc) | 6.27A |
Current at Pmax(Imp) | 5.92A |
Cells Effi ciency(%) | 22.7% |
The maximum system voltage | 600V DC(IEC) |
Power temperature coeffi cient | -0.38%/℃ |
Voltage temperature coeffi cient | -0.36%/℃ |
Current temperature coeffi cient | -0.07%/℃ |
Output power tolerance | ±3% |
Operating Temperature | -40℃-+85℃ |
Weight | About 2.2kg |
Size(mm) | 1195 X 540 X 2 mm |
L : length / W : Width / H : height
