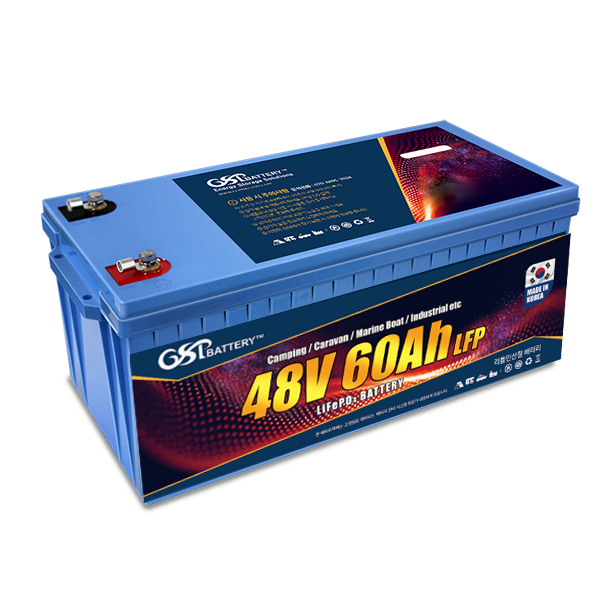

LFP 48V 60A




CHECK!!

01. High-end lithium iron phosphate cylindrical cell with enhanced stability

It is made of high-quality cylindrical cells with high durability and safety, and has very low self-discharge and energy loss rates, making it economical and highly efficient.


02. Built-in BMS

The BMS circuit has a built-in management system circuit that controls the battery pack, safely controlling the battery pack including overcharge protection, overdischarge protection, short circuit protection, overcurrent protection, and reverse charge protection.


03. Components

User Manual (Quality Warranty / 2 Year Quality Warranty Period)




※ Lithium iron phosphate battery features

01. The most economical and efficient battery

Lithium iron phosphate batteries have a lifespan of about 10 times longer than lead-acid batteries of the same capacity and have about twice the energy density per weight.

In addition, there is no memory effect, so there is no loss of capacity, and fast charging and low natural discharge rate enable long-term use, making it an efficient and economical battery used in various fields.



02. High safety and durability

It is the safest against fire and explosion among existing batteries and does not emit flammable gases.

Its durability is excellent as there is no loss of weight even in hot summers and extreme winters (-20℃ to 60℃).


03. Eco-friendly, non-toxic future battery

The lithium iron phosphate battery is safe as it uses eco-friendly raw materials that do not contain high concentrations of sulfuric acid or potassium hydroxide.

In addition, there is no risk of hydrogen gas leaking when overcharging, and performance does not drop drastically in high or low temperature environments, so there is a low risk of explosion.


 MODEL

LFP 48V 60A

 Rated Voltage

 51.2V

  Max Discharging Current

60A

 Charging Voltage

58.4V

 Capacity

60Ah 3,072Wh

 Recommended Max Discharging Current

 30A

  Recommended Max charging Current

 30A

 Max Charging current

60A

 Max Discharging current

 60A

 Safety Protection

BMS

 Cycle

2,000↑

Recommended Charging TEMP

 0℃ ~ 45

Recommended Discharging TEMP

-20℃~ 60℃

 Charging Speed

 Fast Charging

Case / Weight

ABS&PC  /  About 40kg

 Sie(L X W X H)

330  X  173  X  216

 L : length /  W : Width / H : height
