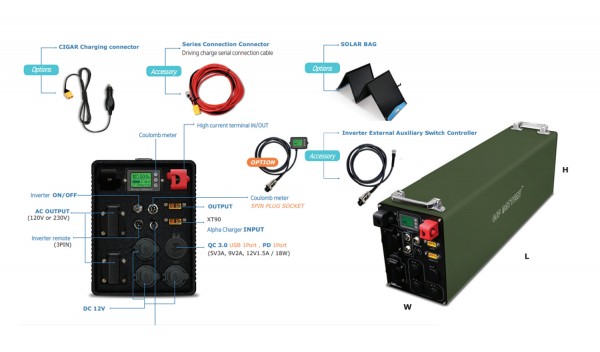

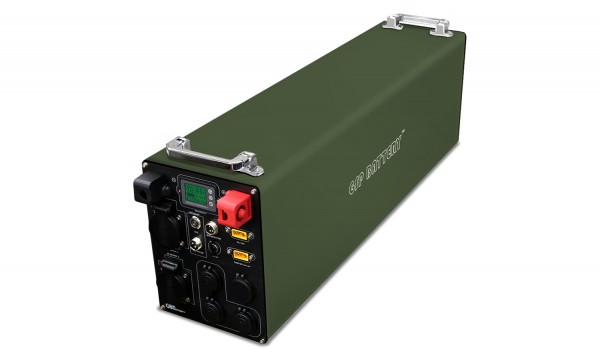

ALL IN ONE 300A Alpha Charger


 internal accessories

-.  LiFePO4 Battery 300A

-.  Driving Charger 30A

-.  Pure sine wave 2,000W

composition

 -. User Manual (Quality Warranty / 2 Year Quality Warranty Period)

 -. Direct charging connection line


※ Lithium iron phosphate battery features

01. The most economical and efficient battery

Lithium iron phosphate batteries have a lifespan about 10 times longer than lead-acid batteries of the same capacity and have about twice the energy density per weight.

In addition, there is no memory effect, so there is no loss of capacity, and rapid charging and low natural discharge rate allow for long-term use, making it an efficient and economical battery used in various fields.




02. High safety and durability

It is the safest against fire and explosion among existing batteries and does not emit flammable gases.

Its durability is excellent as there is no loss of weight even in hot summers and extreme winters (-20℃ to 60℃).



03. Eco-friendly, non-toxic future battery

Lithium iron phosphate batteries are safe as they are made from eco-friendly raw materials that do not contain high concentrations of sulfuric acid or potassium hydroxide.

In addition, there is no risk of hydrogen gas leaking when overcharging, and performance does not drop drastically in high or low temperature environments, so there is a low risk of explosion.



 MODEL

ALL IN ONE 300A Alpha Charger

 Nominal  Voltage

 12.8V

 Capacity

300Ah 3,840Wh

Alpha Charger Input( XT-90 Male)

Driviring Charging : 12.5V~15V Max. 30A (384W)

Solar panel : 12.5V~30V, Max. 15A (192W)

Cigar : 12.5V~15V, Max. 10A (128W)

Charger Input

Max. 14.6V 50A (recommended current Max. 20A)

AC Wave form

120V or 220V 50/60Hz 2Port(Sum. Max. 2000W )

 AC Output power

Pure sine wave inverter

AC Remote SW

GX16-3PIN Male ( internal specifi cations )





 DC Output

 High current terminal (10V~14.6V (Max.200A))

XT-90 male ( Max. 90A 3Port ) (recommended current Max. 70A)

QC 3.0 (USB-A 2Port) ,PD (USB-C 5V3A, 9V2A, 12V1.5A)

MAX. 3A(36W) 2Port

Cigar 12V Max. 10A(120W) 1Port

DC jack (5.5 * 2.1 ) 60W 2Port

 Coulometer

Include : BM715(Current of 350A sampler)

 Ext : GX16-5PIN Male ( internal specifi cations )

 Safety Protection

 BMS

 Case

Alluminum

 Recommended Charging TEMP

 0℃ ~ 45℃

 Recommended Discharging TEMP

-20℃ ~ 60℃

 Weight

About 41.4kg

 Sie(L X W X H)

757 X 186.4 X 241.4

 L : length /  W : Width / H : height
