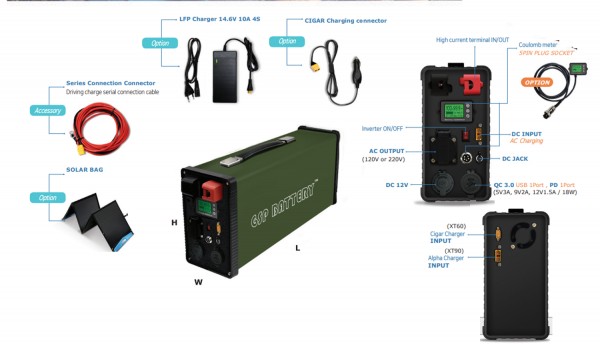

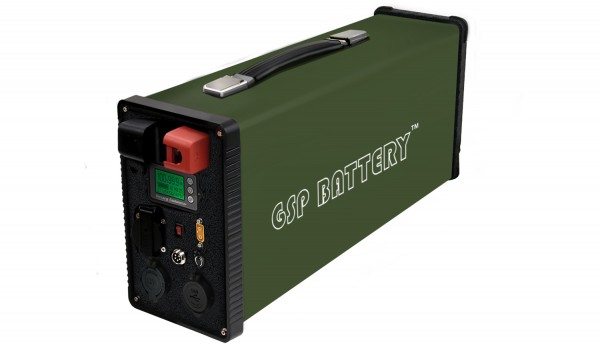

ALL IN ONE SMART 100A Alpha Charger
internal accessories | -. LifePO4 Battery 100A |
-. Cigar charging 7.5A | |
-. Pure sine wave 600W | |
composition | -. User Manual (Quality Warranty / 2 Year Quality Warranty Period) |
-. Cigar charging line -.10A AC charger
|
※ Lithium iron phosphate battery features
01. The most economical and efficient battery
Lithium iron phosphate batteries have a lifespan about 10 times longer than lead-acid batteries of the same capacity and have about twice the energy density per weight.
In addition, there is no memory effect, so there is no loss of capacity, and rapid charging and low natural discharge rate allow for long-term use, making it an efficient and economical battery used in various fields.
02. High safety and durability
It is the safest against fire and explosion among existing batteries and does not emit flammable gases.
Its durability is excellent as there is no loss of weight even in hot summers and extreme winters (-20℃ to 60℃).
03. Eco-friendly, non-toxic future battery
Lithium iron phosphate batteries are safe as they are made from eco-friendly raw materials that do not contain high concentrations of sulfuric acid or potassium hydroxide.
In addition, there is no risk of hydrogen gas leaking when overcharging, and performance does not drop drastically in high or low temperature environments, so there is a low risk of explosion.
MODEL | ALL IN ONE SMART 100A Alpha Charger |
Nominal Voltage | 12.8V |
Capacity | 100Ah 1,280Wh |
Alpha Charger Input( XT-90 Male) | Driviring Charging : 12.5V~15V Max. 30A (384W) |
Solar panel : 12.5V~30V, Max. 15A (192W) | |
Cigar : 12.5V~15V, Max. 10A (128W) | |
Charger Input | Max. 14.6V 50A (recommended current Max. 20A) |
AC Wave form | 220V, 60Hz 1Port(Sum. Max. 600W ) |
AC Output power | Pure sine wave inverter |
DC Output | High current terminal (10V~14.6V (Max.200A)) |
XT-90 male ( Max. 90A 3Port ) (recommended current Max. 70A) | |
QC 3.0 (USB-A 2Port) ,PD (USB-C 5V3A, 9V2A, 12V1.5A) MAX. 3A(36W) 2Port | |
Cigar 12V Max. 10A(120W) 1Port | |
DC jack (5.5 * 2.1 ) 60W 2Port | |
Coulometer | Include : BM715(Current of 350A sampler) |
Ext : GX16-5PIN Male ( internal specifi cations ) | |
Safety Protection | BMS |
Case | Alluminum |
Recommended Charging TEMP | 0℃ ~ 45℃ |
Recommended Discharging TEMP | -20℃ ~ 60℃ |
Weight | About 17kg |
Sie(L X W X H) | 600 X 114 X 221 |
L : length / W : Width / H : height
