CAMPER-D 210C Alpha Charger
CHECK !!
01. High-end lithium iron phosphate cylindrical cell with enhanced stability
It is made of high-quality cylindrical cells with high durability and safety, and has very low self-discharge and energy loss rates, making it economical and highly efficient.
02. Built-in BMS
Built-in BMS circuit, management system circuit that controls the battery pack is built-in to provide overcharge protection, overdischarge protection, short circuit protection, overcurrent protection, reverse charge protection, etc. Safely controls the battery pack.
03. Accessories
User manual (quality warranty) & driving charging connection cable
It can be charged while driving, and when connected to a lithium iron phosphate starting battery, the remaining energy is charged, excluding the starting ability, even in no-start state.
※ LiFePO4 battery features
01. The most economical and efficient battery
Lithium iron phosphate batteries have a lifespan about 10 times longer than lead-acid batteries of the same capacity and have about twice the energy density per weight.
In addition, there is no memory effect, so there is no loss of capacity, and rapid charging and low natural discharge rate allow for long-term use, making it an efficient and economical battery used in various fields.
02. High safety and durability
It is the safest against fire and explosion among existing batteries and does not emit flammable gases.
Its durability is excellent as there is no loss of weight even in hot summers and extreme winters (-20℃ to 60℃).
03. Eco-friendly, non-toxic future battery
Lithium iron phosphate batteries are safe as they are made from eco-friendly raw materials that do not contain high concentrations of sulfuric acid or potassium hydroxide.
In addition, there is no risk of hydrogen gas leaking when overcharging, and performance does not drop drastically in high or low temperature environments, so there is a low risk of explosion.

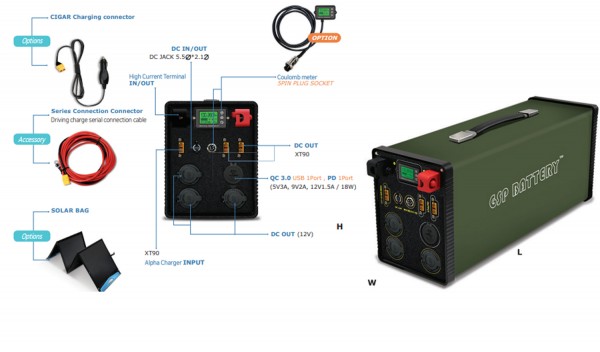

MODEL | CAMPER-D 210C Alpha Charger |
Norrminal Voltage | 12.8V |
Capacity | 210Ah 2,688Wh |
Alpha Charger Input( XT-90 Male) | Driviring Charging : 12.5V~15V Max. 30A (384W) |
Solar panel : 12.5V~30V, Max. 15A (192W) | |
Cigar : 12.5V~15V, Max. 10A (128W) | |
Charger Input | Max. 14.6V 100A (recommended current Max. 40A) |
Safety Protection | BMS |
Output | High current terminal (10V~14.6V (Max.200A)) |
XT-90 male ( Max. 90A 1Port ) (recommended current Max. 70A) | |
QC 3.0 (USB-A 1Port) ,PD (USB-C 5V3A, 9V2A, 12V1.5A) MAX. 1.5A(18W) 1Port | |
Cigar 12V Max. 10A (120W) 3Port | |
DC jack (5.5 * 2.1 ) 60W 2Port | |
Coulometer | Include : BM715(Current of 350A sampler) |
Ext : GX16-5PIN Male ( internal specifi cations ) | |
Cycle | 2,000↑ |
Recommended Charging TEMP | 0℃ ~ 45℃ |
Recommended Discharging TEMP | -20℃~ 60℃ |
Weight | About 28kg |
Sie(L X W X H) | 562 X 186.4 X 241.4 |
L : length / W : Width / H : height
