MODEL

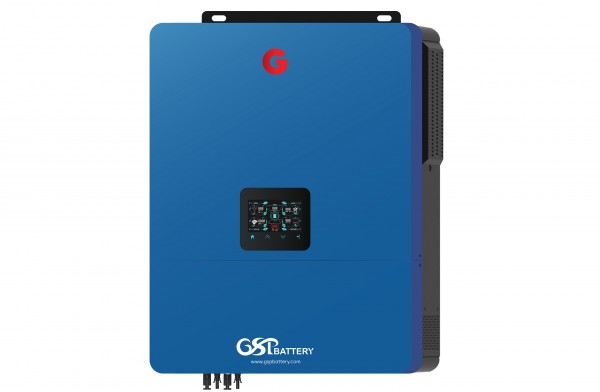

GSP48-HBI8200 PRO

Maxium Load Cut Off Voltage

52VDC

Maxium Load Return Voltage

54VDC

Nominal DC Voltage

48VDC

Maximum PV Input Powe

5400W+5400W

Rated Output Power

8200W/8200VA

Maximum Solar Charging Current

160A

Nominal DC Voltage/Maximum DC Voltage

360/500VDC

Start-up Voltage / Initial Feeding Voltage

90VDC/120VDC

MPPT Voltage Range

90~450VDC

Maximum Input Current

2/18A

Nominal Output Voltage

220/230/240VAC

Output Voltage Range

190~253VAC

Nominal Output Current

35.6A

 Maximum Conversion Efficiency (DC/AC)

 98%

 Full Load / Maxium Second Load(battery mode)

8200W / 2733W

 AC Start-up Voltage / Auto Restart Voltage

 120-140VAC/180VAC

 Acceptable Input Voltage Range

 90-280VAC or 170-280VAC

 Frequency Range

 49~51 ± 1HZ

 Output Waveform

 Pure sine wave

 Communication Port

 RS232/RS485/WIFI/GPRS/LITHIUM BATTERY

 Humidity

 5% to 95% Relative Humidity(Non condensing)

 Operating Temperature

 -10℃ 50℃

 Size(L X W X H)

 530 X 390 X 1770 mm

 weight

About 15.8kg
